'The Molly is designed for 21st century sustainable living. This smart floor plan features modern open living spaces including a spacious bath, kitchen, living and sleeping area as well as a roof deck. Live large with twelve foot ceilings, abundant windows, and a large attic providing plenty of efficient storage.
Details include:
· 32” by 102” trailer with 8’ above gooseneck hitch rated at 21k GVW. Cross members on 16” centers 3in channel. Three 7k drop axles, 2 brakes, 2 12k drop log jacks at front, LED sealed beam tail lights. Custom order from Retco Trailers
· 2x4 walls and 2x6 ceiling with Roxul insulation (3.75” and 5.75” respectively) in both
· 24kk BTU Mr Cool Mini split with heat pump. 240volt system
· 8’ 1X6 decked and sealed roof over hitch with a 30yr EPDM membrane underlayment
· 21’ shingled asymmetrical A-frame roof over middle portion of house with Owens Corning Shingles
· 26 gauge 11’ Dutch energy efficient AP Panel Metal roof over loft and kitchen
· Rinnai V65EP tankless propane hot water heater rated at 6.6GPM
· House is ran with standard ¾ Pex tubing with ½ Pex to fixture
· Propane regulator rated at 400k BTU/hr and has an 8’ hose with connection to standard propane tanks. ½” black pipe ran to hot water heater, gas clothes dryer outlet, and full-sized convection cooking oven inside
· Standard PVC plumbing with a drain outlet of 4” to sewer
· Windows are Jeld-Wen Vinyl Double Pane Low-E
· 1x8 pine shiplap throughout inside painted satin white

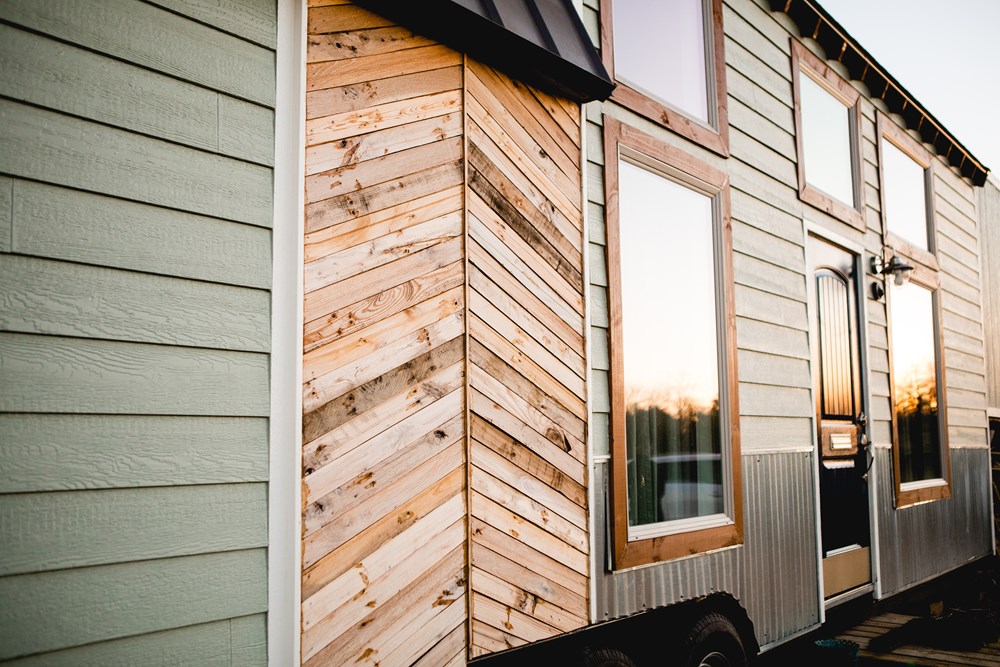

· Smartside 76 siding and trim on outside painted with Sherwin Williams exterior Emerald acrylic latex paint
· Window Trim is 1x4 treated wood stained and sealed
· Sealed cedar shake on the back of house
· Electric wired with 12/2 Romex and 200amp outdoor rated electric box with circuits altog
