Modern and custom-built by Shelterwise, on an Iron Eagle trailer.
Iron Eagle Custom Tiny House 24′ trailer: 14000 lb. rated, brakes, lights, galvanized metal pan/road barrier, 4 ea. stabilizer jacks, all in attractive charcoal grey. Iron Eagle easily provides the best tiny house trailer we have ever built on. Check them out and tell them we sent you
• Sub Floor: A complete floor box assembly that sits inside the trailer (this does not include a finished floor). The floor box starts with a 24G galvanized metal pan/road barrier, one of the best insulated floor assemblies out there in a tiny house at R28 (R23 Roxul with a R5 closed cell foam complete thermal break), 2 by 6 construction, and 3/4″ tongue and groove subfloor. Insulated wheel wells.
• Walls & Roof: Stick-built walls and roof are framed and attached to the trailer. We use only the best lumber, kiln dried to a moisture content of less than 12% and is locally sourced just outside of Portland. The house is sheathed with 7/16″ ZipWall panels laid out to minimize any horizontal seams. The overall house dimensions are 24′ long x 8.5′ wide (9.5′ wide including eaves) x 13.5′ high.
• Secured: 12 ea. engineered Simpson high tension tie-downs bolted to trailer using 5/8″ bolts and engineered rafter lockers. All ZipWall sheathing is attached using VOC compliant construction adhesive and a 4-6″ on seams and 8-12″ in field ring shank nail pattern.
• Water Resistant: Grace Ice and water high temperature membrane (designed for metal roof assembly) on the roof to the ZipWall sheathing (water and vapor barrier), all seams are taped.
-Rinnai Direct Vent Tankless Water Heater
-With 2 5 gallon propane tanks
-Pioneer minisplit system (a/c and heat)
-Envi wall mounted heater
-LG front load all-in-one washer dryer combination

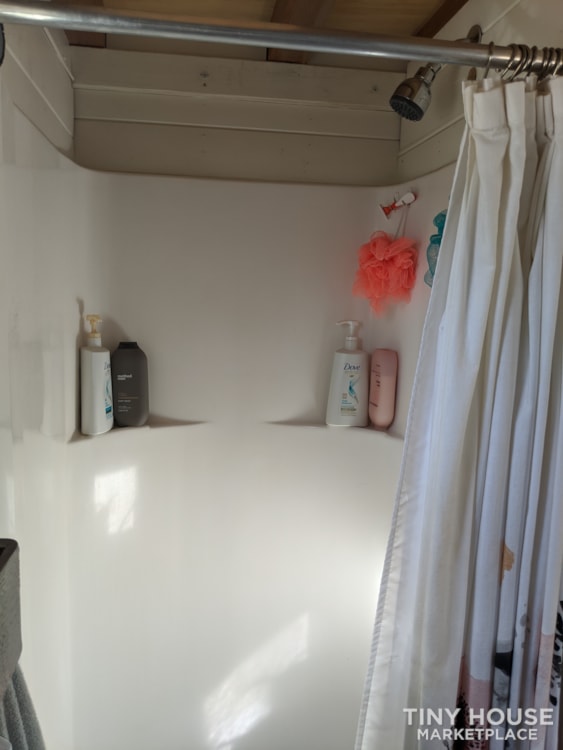

-32 x 32 Aquatic Shower

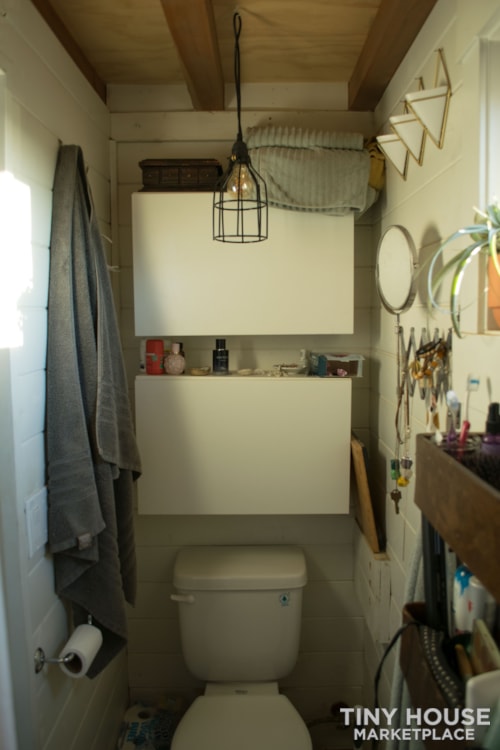

-Plumbed for a standard flushing toilet but also has ventilation insta
