The Build:

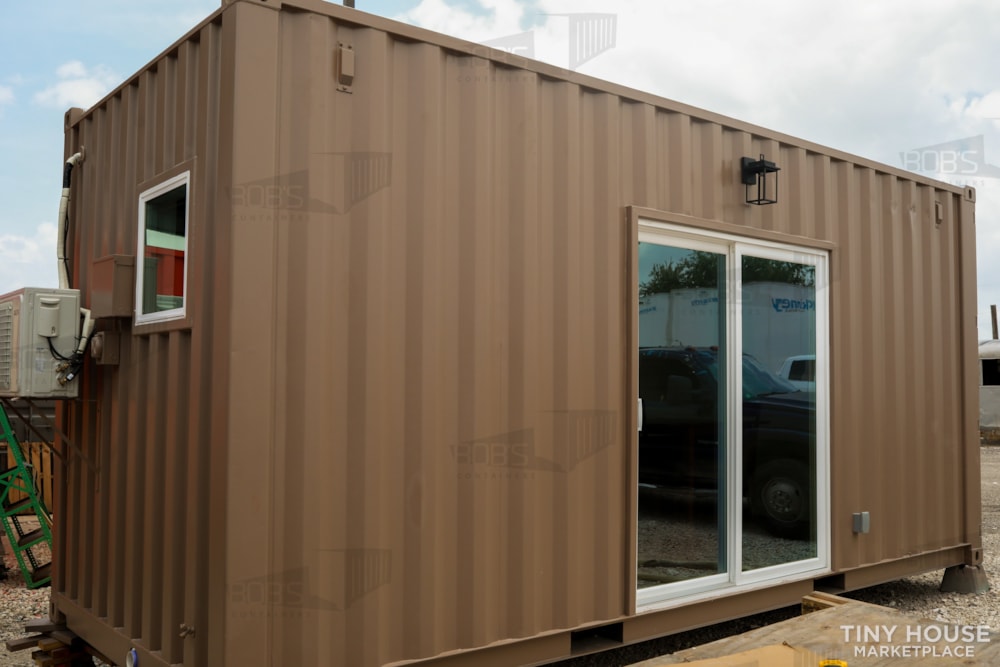

This 20 ft container home features an open layout to give you as much space as possible to make your home feel more like, well, home.
Here's how our customization process works.
The Specs:
Dimensions:
Bedroom – 10 ft (L) x 7 ft (W) x 8 ft (H)
Kitchen – 6 ft (L) x 7 ft (W) x 8 ft (H)
Bathroom – 4 ft (L) x 7 ft (W) x 8 ft (H)
Insulation:
R13- 2 in closed spray Foam in walls
R21- 3 in closed cell spray foam in the ceiling
R6- 1 in closed cell spray foam under a container
Electrical:
Qty 1 - 125amp 12 Slot Panel Breaker Box (interior mount with exterior cutoff)
Qty 4 - 110v Duplex Outlets (Bedroom/Living Area)
Qty 1 - 110v Quadplex Outlet (Kitchen Counter)
Qty 1 - 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
Qty 1 - 110v Duplex Outlet dedicated on a 20amp breaker for electric stovetop
Qty 1 - 110v GFCI Duplex (Restroom)
Qty 1 - 110v Exterior Outlet
Qty 1 - Exterior Light
Interior Finish Choices (choose from above menu):
Base - White Drywall *This is default finish*
Rustic - Cedar Shiplap
Modern - White Shiplap
Flooring:
Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
MEP:
HVAC- One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
Water in: ½ in RV hose spigot for water is installed on rear. 1/2 PEX plumbing
Greywater- 5 in PVC "stub out" to be connected to the city sewer or RV hookup
Blackwater- 3 inPVC "stub out" to be connected to the city sewer or RV hookup
Water heater - 13 kW Self-Modulating 2.54 GPM installed in the restroom. All PEX plumbing is insulated
Doors:
Qty 1 – 6 ft x 6 ft 8 in Sliding Glass Goor
Qty 1 – 2 ft x 2 ft Window installed in the bathroom.
3/4 Bathroom:
Qty 1 – 3 ft x 3 ft Shower Stall
Qty 1 – 5 ft Vanity Sink with Faucet
Qty 1 - American Standard Toilet
Qty 1 – 2 ft Pocket Door Entrance
Qty 1 - Vent Fan with Light

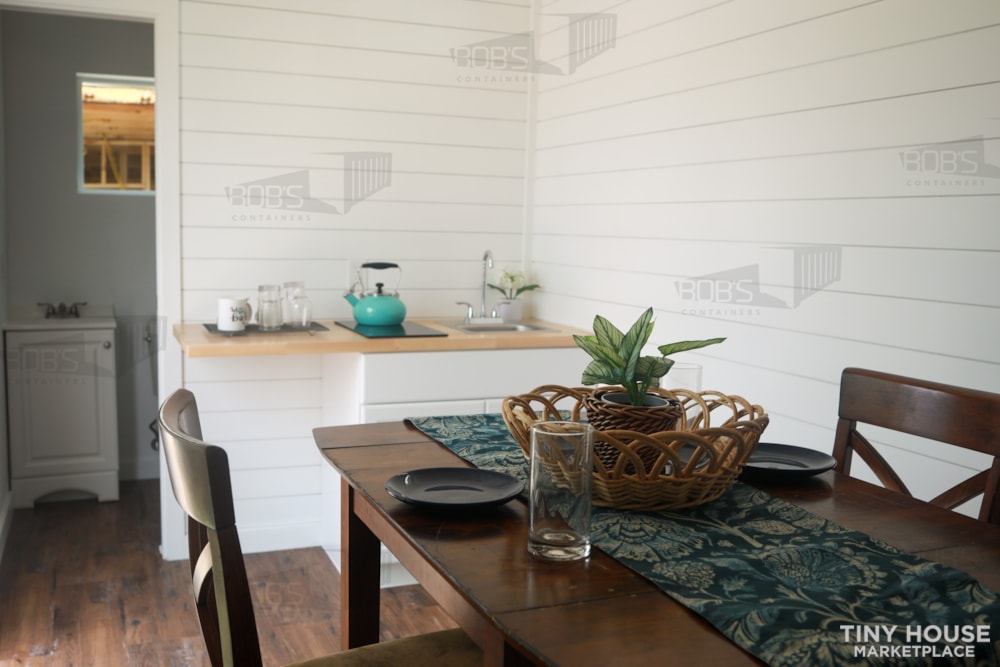

Kitchenette:
Qty 1 – 3 ft Base Cabinets with Butcher Block Counter
